| East African Railways 58 class |
|---|

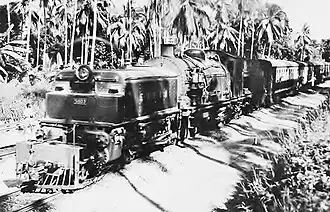

 5803 at Changamwe, Kenya, with the Mombasa–Kampala mail train, circa 1950-51 |
| Type and origin |
|---|
| Power type | Steam |
|---|
| Designer | |
|---|
| Builder | Beyer, Peacock & Co. |
|---|
| Serial number | 7290–7307 |
|---|
| Build date | 1949 |
|---|
| Total produced | 18 |
|---|
|
| Specifications |
|---|
Configuration:
| |
|---|
| • Whyte | 4-8-4+4-8-4 Garratt |
|---|
| • UIC | (2′D2′)(2′D2′) h4 |
|---|
| Gauge | 1,000 mm (3 ft 3+3⁄8 in) |
|---|
| Driver dia. | 54 in (1,372 mm) |
|---|
| Width | 114 in (2,900 mm) |
|---|
| Adhesive weight | 94 long tons (96 t) |
|---|
| Loco weight | 186.25 long tons (189.24 t) |
|---|
| Fuel type | Oil |
|---|
| Fuel capacity | 2,375 imp gal (10,800 L; 2,852 US gal) |
|---|
| Water cap. | 6,000 imp gal (27,000 L; 7,200 US gal) |
|---|
| Firebox: | |
|---|
| • Grate area | 48.5 sq ft (4.51 m2) |
|---|
| Boiler pressure | 225 psi (1.55 MPa) |
|---|
| Heating surface: | |
|---|
| • Firebox | 169 sq ft (15.7 m2) |
|---|
| • Tubes |
1,963 sq ft (182.4 m2) |
|---|
| • Total surface | 2,561 sq ft (237.9 m2) |
|---|
Superheater:
| |
|---|
| • Type | Inside |
|---|
| • Heating area | 429 sq ft (39.9 m2) |
|---|
| Cylinders | 4 |
|---|
| Cylinder size | 16.5 in × 26 in (419 mm × 660 mm) |
|---|
| Valve gear | Walschaerts |
|---|
| Valve type | Trunk type |
|---|
| Valve travel | 5 in (130 mm) |
|---|
| Loco brake | Westinghouse type |
|---|
| Train brakes | Westinghouse type |
|---|
| Safety systems | 3 Ross muffled pop valves |
|---|
|
|
|
The EAR 58 class was a class of 1,000 mm (3 ft 3+3⁄8 in) gauge 4-8-4+4-8-4 Garratt-type articulated steam locomotives built by Beyer, Peacock & Co. in Manchester, England, in 1949.
The eighteen members of the class were ordered by the Kenya-Uganda Railway (KUR) immediately after World War II, and were a slightly modified, oil-burning version of the KUR's existing coal-fired EC3 class. By the time the new locomotives were built and entered service, the KUR had been succeeded by the East African Railways (EAR), which designated the coal-fired EC3s as its 57 class, and the new, oil-burning EC3s as its 58 class.
Class list
The numbers and build dates of each member of the class were as follows:
Builder's
number
|
Built
|
KUR
number
|
EAR
number
|
Notes
|
| 7290
|
1949
|
89
|
5801
|
|
| 7291
|
1949
|
90
|
5802
|
|
| 7292
|
1949
|
91
|
5803
|
|
| 7293
|
1949
|
92
|
5804
|
|
| 7294
|
1949
|
93
|
5805
|
|
| 7295
|
1949
|
94
|
5806
|
|
| 7296
|
1949
|
95
|
5807
|
|
| 7297
|
1949
|
96*
|
5808
|
First member of class to enter service with EAR number.
|
| 7298
|
1949
|
97*
|
5809
|
|
| 7299
|
1949
|
98*
|
5810
|
|
| 7300
|
1949
|
99*
|
5811
|
|
| 7301
|
1949
|
100*
|
5812
|
|
| 7302
|
1949
|
101*
|
5813
|
|
| 7303
|
1949
|
102*
|
5814
|
|
| 7304
|
1949
|
103*
|
5815
|
|
| 7305
|
1949
|
104*
|
5816
|
|
| 7306
|
1949
|
105*
|
5817
|
|
| 7307
|
1949
|
106*
|
5818
|
|
| * KUR number allocated but not carried
|
|
See also
References
Notes
Bibliography
- Durrant, A E (1981). Garratt Locomotives of the World (rev. and enl. ed.). Newton Abbot, England: David & Charles. ISBN 0-7153-7641-1. OCLC 9326294.
- Patience, Kevin (1976), Steam in East Africa: a pictorial history of the railways in East Africa, 1893-1976, Nairobi: Heinemann Educational Books (E.A.) Ltd, OCLC 3781370, Wikidata Q111363477
- Ramaer, Roel (1974). Steam Locomotives of the East African Railways. David & Charles Locomotive Studies. Newton Abbot, North Pomfret: David & Charles. ISBN 978-0-7153-6437-6. OCLC 832692810. OL 5110018M. Wikidata Q111363478.
- Ramaer, Roel (2009). Gari la Moshi: Steam Locomotives of the East African Railways. Malmö: Stenvalls. ISBN 978-91-7266-172-1. OCLC 502034710. Wikidata Q111363479.
- Staff writer (February 1957). "The "58" Class Locomotives" (PDF). East African Railways and Harbours Magazine. 3 (1). East African Railways and Harbours: 20. Retrieved 8 December 2014.
