EMD SD38-2

EMD SD38-2

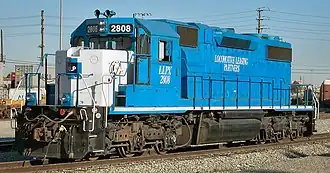

LLPX 2808 in February 2005
Type and origin Power type Diesel-electric Builder General Motors Electro-Motive Division (EMD) General Motors Diesel, Canada Model SD38-2 Build date 1972–1979 Total produced 90
Specifications Configuration: ​  • AAR C-C  • UIC Co′Co′ Gauge 4 ft 8+1⁄2 in (1,435 mm) standard gauge[a] Wheel diameter 3 ft 4 in (1.016 m) Wheelbase   ​  • Truck 13 ft 7 in (4.14 m) Pivot centres 43 ft 3.5 in (13.195 m) between bolsters; Width 10 ft 3+1⁄8 in (3.13 m) over handrail supports Height 15 ft 7+1⁄4 in (4.76 m) over cooling fan guard Loco weight 368,000 lb (167,000 kg) Fuel type Diesel Fuel capacity 3,200 or 4,000 US gal (12,000 or 15,000 L; 2,700 or 3,300 imp gal) Prime mover EMD 16-645E RPM: ​  • RPM idle 200  • Maximum RPM 950 Engine type V16 Two-stroke diesel Aspiration Roots-blown Alternator AR10E1-D14 generator-alternator Generator AR10E1-D14 generator-alternator Traction motors 6 × D77/78 DC Cylinders 16 Gear ratio 62:15 Loco brake Air, Dynamic Train brakes Air Safety systems Deadman
Performance figures Maximum speed 65 mph (105 km/h) Power output 2,000 hp (1,500 kW)
Career Locale North America, South America

The EMD SD38-2 is a model of six-axle diesel-electric locomotive built by General Motors Electro-Motive Division (EMD) from 1972 to 1979. EMD built 90 of these medium road-switchers, which were used in both yard and mainline roles. Part of the EMD Dash 2 line, the SD38-2 was an upgraded SD38 with modular electronic control systems, HT-C trucks, and many other detail improvements. The locomotive's power was provided by an EMD 16-645E 16-cylinder engine, which could generate 2,000 horsepower (1,500 kilowatts). These units were constructed with either 3,200 or 4,000 US gal (12,000 or 15,000 L; 2,700 or 3,300 imp gal) fuel tanks and were available with or without dynamic brakes. It shared the same 64-foot-8-inch (19.71 m) frame as the SD40-2 and SD45-2, which gives it a length over couplers of 68 feet 10 inches (20.98 m).

• List of GM-EMD locomotives
• List of GMD Locomotives

• Pinkepank, Jerry A. (1973). The Second Diesel Spotter's Guide. Milwaukee, Wisconsin: Kalmbach Publishing. ISBN 978-0-89024-026-7.
• GATX Rail Locomotive Group. SD38-2 specification page. Retrieved on June 23, 2005.
• Sarberenyi, Robert. EMD SD38-2 Original Owners
• EMD SD38-2 general arrangement drawing (Spec. 8086 07/75) and clearance diagram (04/72), Robb Fisher, RFDI.
