Edenton-class salvage and rescue ship

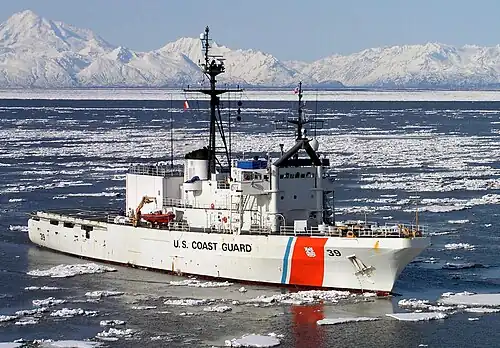

USCGC Alex Haley
Class overview
NameEdenton class
BuildersBrooke Marine
Operators
Succeeded byNavajo class
Built1967-1972
In commission1971-present
Planned3
Completed3
Active1
Retired2
General characteristics
TypeSalvage and rescue ship
Displacement
  • 2,592 t (2,551 long tons), light
  • 3,484 t (3,429 long tons), full load
Length283 ft (86 m)
Beam59 ft (18 m)
Draft17 ft (5.2 m), 18 ft (5.5 m)max
Installed power6,800 shp (5,100 kW)
Propulsion
Speed18 knots (33 km/h; 21 mph)
Range8,689 nmi (16,092 km; 9,999 mi)
Complement10 officers, 90 enlisted
Sensors &
processing systems		AN/SPS-40 air-search radar (Edenton)
Armament
Aviation facilitiesHelipad (Edenton)

The Edenton-class salvage and rescue ship was a class of salvage and rescue ships that were operated by the United States Navy during the 1970s.

Design

Edenton-class was a ship class consisting of three purpose built rescue ships, where they were brought into service in the 1970s. This class of ships were succeeded by the Navajo-class, as the designation ATS-4 and 5 were not used.[1][2]

The ships were armed with two M242 Bushmaster and two M2 Browning machine guns for self-defense.[2]

Ships in the class

Edenton class[2]
Hull no. Name Callsign Builder Laid Down Launched Commissioned Decommissioned Fate
ATS-1 Edenton NXSF Brooke Marine 28 March 1967 15 May 1968 23 January 1971 29 March 1996 Transferred to the Coast Guard as USCGC Alex Haley (WMEC-39), 1999
ATS-2 Beaufort NUOT 19 February 1968 1 December 1968 22 January 1972 8 March 1996 Sold to South Korea and renamed ROKS Pyeongtaek (ATS-27), 1997[3]
ATS-3 Brunswick NRCN 5 June 1968 14 October 1969 19 December 1972 8 March 1996 Sold to South Korea and renamed ROKS Gwangyang (ATS-28), 1997
