FM- and TV-mast Klepaczka
| FM/TV Mast Klepaczka/Wręczyca Wielka | |
|---|---|
 | |
| General information | |
| Status | Completed |
| Type | TV Mast |
| Location | Klepaczka, Kłobuck County, Poland |
| Completed | 1997 |
| Height | 340 m (1,115.49 ft) |
Klepaczka Mast | |
|---|---|
  Klepaczka Mast | |
| Coordinates: 50°51′02″N 18°51′25″E / 50.85056°N 18.85694°E | |
| Voivodeship | Silesian Voivodeship |
| County | Kłobuck County |
| Gmina | Wręczyca Wielka |

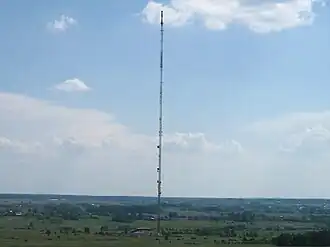

The FM/TV Mast Wręczyca Wielka/Klepaczka is a 340 metre tall guyed mast for FM and TV situated at Klepaczka, Kłobuck County, Silesian Voivodeship in Poland. The FM/TV Mast Wręczyca Wielka/Klepaczka, which was built in 1997, is since the collapse of the Warsaw radio mast the fifth tallest structure in Poland. The site is also known as Wręczyca Transmitter.
Transmitted programs
| Program | Frequency MHz |
ERP kW |
Polarisation | Antenna Diagram around (ND) / directional (D) |
|---|---|---|---|---|
| Polskie Radio Program IV | 87.50 | 10 | Horizontal | D |
| Polskie Radio Program II | 90.60 | 60 | Horizontal | D |
| Polskie Radio Program III | 91.70 | 60 | Horizontal | D |
| Polskie Radio Katowice | 98.40 | 60 | Horizontal | D |
| Radio Jasna Góra | 100.60 | 60 | Horizontal | D |
| Radio ZET | 103.40 | 60 | Horizontal | D |
| RMF FM | 105.90 | 60 | Horizontal | D |
| Multiplex | Programs in Multiplex | Frequency MHz |
Channel | ERP kW |
Polarisation | Antenna Diagram around (ND) / directional (D) |
Modulation | FEC |
|---|---|---|---|---|---|---|---|---|
| MUX 1 | 586 | 35 | 100 | Horizontal | ND | 64 - QAM | 3/4 | |
| MUX 2 | 618 | 39 | 100 | Horizontal | ND | 64 - QAM | 3/4 | |
| MUX 3 | 634 | 41 | 80 | Horizontal | D | 64 - QAM | 5/6 | |
| MUX 8 | 205,5 | 9 | 8 | Vertical | D | 64 - QAM | 5/6 |
