Toyota Grand Highlander

Toyota Grand Highlander

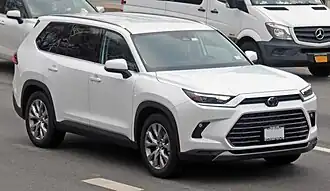

2024 Toyota Grand Highlander Limited (US)
Overview
ManufacturerToyota
Model codeAS10[1]
ProductionAugust 2023 – present[2]
Model years2024–present
Assembly
Body and chassis
ClassMid-size crossover SUV[4]
Body style5-door SUV
Layout
PlatformTNGA: GA-K[5]
ChassisUnibody
Related
Powertrain
Engine
Power output
  • 265 hp (198 kW; 269 PS) (Gas)
  • 245 hp (183 kW; 248 PS) (Hybrid, combined)
  • 362 hp (270 kW; 367 PS) (Hybrid MAX, combined)
Transmission
  • 8-speed UA80F "Direct Shift" ECTi automatic (Gas)
  • eCVT with sequential shift mode (Hybrid)
  • 6-speed "Direct Shift-6AT" automatic + "eAxle" (Hybrid MAX)
Hybrid drivetrainPower-split (Hybrid)
Parallel (Hybrid MAX)
Dimensions
Wheelbase2,950 mm (116.1 in)
Length201.4 in (5,116 mm)
Width78.3 in (1,989 mm)
Height70.1 in (1,781 mm)
Curb weight4,300–4,920 lb (1,950–2,232 kg)

The Toyota Grand Highlander is a mid-size crossover SUV[4] with three-row seating produced by Toyota since 2023. The Grand Highlander was introduced for the North American market on February 8, 2023. While sharing the nameplate and the GA-K platform with the regular Highlander, the Grand Highlander is longer, taller, and wider, and features entirely different exterior and interior styling.[6][7]

In the North American market, the Grand Highlander is positioned between the smaller Highlander and the larger Tundra-based Sequoia.[8] It is available in five grade levels: XLE, Limited, and Platinum since 2023, Nightshade since 2024, and LE starting in 2025.[9] The Lexus equivalent is known as the Lexus TX, and is also exclusive to North America.

Trim levels

Rear view
Rear view
Grand Highlander trim specifications[10]
Engine
(Trans)
Trim
 Gas
(8sp. auto) 		Hybrid
(eCVT) 		Hybrid MAX
(6sp. auto)
LE Yes Yes No
XLE Yes Yes No
Limited Yes Yes Yes
Nightshade No Yes No
Platinum Yes No Yes

Powertrain

The Grand Highlander exclusively uses four-cylinder powertrains. The gas models use the turbocharged 2.4-liter T24A-FTS engine producing up to 265 hp (198 kW; 269 PS) and 310 lb⋅ft (420 N⋅m) of torque. The 2.5-liter hybrid powertrain from the regular Highlander, using the naturally-aspirated 2.5-liter A25A-FXS engine, is available on LE, XLE, and Limited and standard on Nightshade; it is advertised for a maximum of 245 hp (183 kW; 248 PS) combined. Also available is a turbocharged hybrid powertrain from the Crown Crossover, marketed as "Hybrid MAX," which pairs electric motors with the T24A-FTS.[11] Hybrid MAX is available on Limited and Platinum.

The gas and Hybrid MAX models have a 5,000 lb (2,268 kg) towing capacity, while the Hybrid models are rated to tow 3,500 lb (1,588 kg).

Grand Highlander powertrains[12]
Model
Spec
 Gas
T24A-FTS 		Hybrid
A25A-FXS 		Hybrid MAX
T24A-FTS
Power Torque Power Torque Power Torque
Output Combined, net 265 hp (198 kW) 310 lb⋅ft (420 N⋅m) 245 hp (183 kW) 177 lb⋅ft (240 N⋅m) 362 hp (270 kW) 400 lb⋅ft (540 N⋅m)
Gasoline engine 265 hp (198 kW) at 6000 310 lb⋅ft (420 N⋅m) at 1700-3600 186 hp (139 kW) at 6000 175 lb⋅ft (237 N⋅m) at 3600–5200 271 hp (202 kW) at 6000 339 lb⋅ft (460 N⋅m) at 2000–3000
Electric motor, front — — 88 kW (118 hp) 149 lb⋅ft (202 N⋅m) 61 kW (82 hp) 215.4 lb⋅ft (292.0 N⋅m)
Electric motor, rear — — 40 kW (54 hp) 89 lb⋅ft (121 N⋅m) 58.6 kW (79 hp) 124 lb⋅ft (168 N⋅m)

Safety

The 2024 model year Grand Highlander was not awarded by the IIHS, as it did not receive a Good rating in the driver-side small overlap front crash test to be qualified for a safety award.[13]

IIHS scores (2024)[14]
Small overlap front Acceptable
Moderate overlap front (original test) Good
Side (updated test) Good
Headlights (varies by trim/option) Acceptable
Front crash prevention: vehicle-to-pedestrian Good
Child seat anchors (LATCH) ease of use Good

Model year changes

In 2024, for the 2025 model year, two new trims were introduced: a low-cost LE trim slotting below the XLE trim, and a Hybrid Nightshade trim with the same feature profile as the Limited trim, blacked-out elements such as 20-inch alloy rims and mirror caps, and the 2.5-liter hybrid powertrain featured on the Hybrid XLE and Limited trims.[15]

As standard equipment, the LE trim receives features such as 8-passenger seating with 2nd-row bench seats, a power liftgate, a 12.3-inch touchscreen infotainment system, and heated outer mirrors with blind spot monitors. It is available with either the 2.4-liter turbocharged engine or the 2.5-liter hybrid powertrain.

Sales

Year United States Canada
Overall Hybrid
2023 48,036[16] 11,986[16] 4,383[17]
2024 71,721[18] 26,119
