H-class Sydney tram

H-class
ManufacturerRandwick Tramway Workshops
Constructed1907
Number built2
Fleet numbers739-740
Capacity50 (Seated)
Specifications
Train length26 ft 10 in (8.18 m)
Height12 ft 1.5 in (3.70 m)
DoorsOpen cross bench car - no doors
Maximum speed60 km/h
Weight11.6 long tons (11.8 t)
Steep gradientEquipped with additional mechanical "slipper" track brakes.
Power output2 x 48 hp
Electric system(s)600 V DC Trolley Wire
Current collectionTrolley Pole
Track gauge1,435 mm (4 ft 8+1⁄2 in)

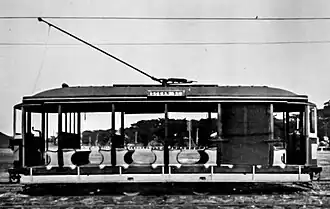

The H-class trams were purpose built single truck, open cross bench cars built at Randwick Tramway Workshops as tourist cars for the City - Bondi Beach/Coogee and City - La Perouse/Botany services.[1]

They later moved to Ridge Street Tram Depot to operate on the Neutral Bay line and again to Rushcutters Bay to operate on the Watsons Bay line.[2]

References

  1. ^ McCarth & Chinn (1974). New South Wales Tramcar Handbook 1861-1961. SPER.
  2. ^ MacCowan, Ian (1990). The Tramways of New South Wales. Oakleigh: Ian MacCowan. p. 120. ISBN 0 949600 25 3.

Further reading

  • Chinn, N (1975). New South Wales Tramcar Handbook 1861-1961. Vol. 1. South Pacific Electric Railway Cooperative Society. ISBN 9780959865967.
  • McCarthy, Ken (1976). New South Wales Tramcar Handbook 1861-1961. Vol. 2. South Pacific Electric Railway Cooperative Society. ISBN 9780959865974.

Media related to Sydney H-Class Tram at Wikimedia Commons
