Harushio-class submarine

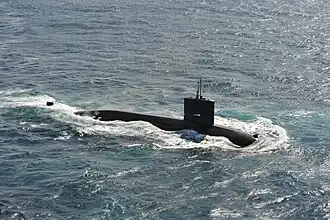

Wakashio, a Harushio-class submarine
Class overview
NameHarushio (はるしお, Spring Tide) class
Builders
Operators Japan Maritime Self-Defense Force
Preceded byYūshio class
Succeeded byOyashio class
Subclasses
  • Harushio (SS-583 to 588),
  • Kai-Harushio (SS-589/TSS-3601)
Built1987–1997
In commission1990–2017
Completed7
Retired7
General characteristics
TypeSubmarine
Displacement
  • SS-583 to SS-588
    • 2,450 tonnes (surfaced)
    • 2,750 tonnes (submerged)
  • SS-589 (TSS-3601)
    • 2,560 tonnes (surfaced)
    • 2,850 tonnes (submerged),
    • 2,900 tonnes (surfaced, April 2002),
    • 3,200 tonnes (submerged, April 2002)
Length
  • SS-583 to SS-588
    • 77 m (252 ft 7 in)
  • SS-589 (TSS-3601)
    • 78 m (255 ft 11 in)
    • 87 m (285 ft 5 in) (April 2002)
Beam10 m (32 ft 10 in)
Draught7.7 m (25 ft 3 in)
Propulsion
  • 1-shaft diesel-electric
  • 3,400 shp (2,500 kW) (surfaced)
  • 7,200 shp (5,400 kW) (submerged)
Speed
  • 12 kn (22 km/h; 14 mph) (surfaced)
  • 20 kn (37 km/h; 23 mph) (submerged)
Complement
  • SS-583 to SS-588
    • 10 officers
    • 65 enlisted
  • SS-589 (TSS-3601)
    • 71
    • 70 (April 2002)
Sensors &
processing systems
  • Hughes/Oki ZQQ 5B hull mounted sonar
  • ZQR 1 towed array
  • JRC ZPS 6 I-band search radar
Armament

The Harushio class is a diesel-electric submarine class operated by the Japanese Maritime Self-Defense Force (JMSDF). The design is an evolution from the Yūshio class being slightly larger and with better noise reduction. Asashio, has been modified to test air-independent propulsion (AIP), and the remaining vessels were decommissioned and replaced by the Oyashio-class.

Natsushio, Hayashio, Arashio and Asashio are all named after World War II destroyers.

Vessels

Project no. Building no. Pennant no. Name Laid down Launched Commissioned Decommissioned Note
S126 8098 SS-583 Harushio (はるしお) 21 April 1987 26 July 1989 30 November 1990 27 March 2009
8099 SS-584 Natsushio (なつしお) 8 April 1988 20 March 1990 20 March 1991 26 March 2010
8100 SS-585/
TSS-3606		 Hayashio (はやしお) 9 December 1988 17 January 1991 25 March 1992 15 March 2011 Converted to training submarine (TSS-3606) on 7 March 2008
8101 SS-586 Arashio (あらしお) 8 January 1990 17 March 1992 17 March 1993 19 March 2012
8102 SS-587 Wakashio (わかしお) 12 December 1990 22 January 1993 1 March 1994 5 March 2013
8103 SS-588/
TSS-3607		 Fuyushio (ふゆしお) 12 December 1991 16 February 1994 7 March 1995 6 March 2015 Converted to training submarine (TSS-3607) on 15 March 2011
S129 8104 SS-589/
TSS-3601		 Asashio (あさしお) 24 December 1992 12 July 1995 12 March 1997 27 February 2017 Converted to training submarine (TSS-3601) on 9 March 2000,
re-converted to AIP testbed in April 2002

See also

References

  • Jane's Fighting Ships 2005–2006
