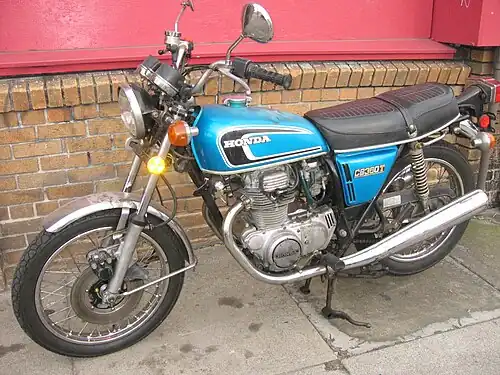

Honda CB360
 | |
| Manufacturer | Honda |
|---|---|
| Production | 1974–1976 |
| Predecessor | Honda CB350 |
| Successor | Honda CB400T |
| Engine | 356 cc (21.7 cu in) OHC air-cooled 2 valves/cyl 180° parallel twin, |
| Bore / stroke | 67 mm × 50.6 mm (2.64 in × 1.99 in) |
| Compression ratio | 9.3:1 |
| Power | 34.00 hp (25.35 kW) @ 9000 RPM |
| Transmission | 6-speed chain drive manual |
| Frame type | Semi-double cradle |
| Suspension | Front: telescoping fork Rear: swingarm |
| Brakes | Front: drum (base model) Front: disc (T model) Rear: drum |
| Tires | 3.00 in × 18 in (76 mm × 457 mm) (front) 3.50 in × 18 in (89 mm × 457 mm) (rear) |
| Rake, trail | ?°/92 mm (3.6 in) |
| Wheelbase | 53 in (1,300 mm) |
| Dimensions | L: 80.3 in (2,040 mm) W: 30.5 in (770 mm) H: 42.1 in (1,070 mm) |
| Seat height | 810 mm (32 in) |
| Weight | 357 lb (162 kg) (dry) 392.4 lb (178.0 kg) (wet) |
| Fuel capacity | 2.9 US gal (11 L; 2.4 imp gal) |
| Oil capacity | 0.7 US gal (2.6 L; 0.58 imp gal) |
The Honda CB360 is a twin cylinder motorcycle introduced by Honda in 1974.[1] Although industry observers called the CB360 "unexciting" and "mediocre", the model was a commercial success, with more than 2 million units built and sold in its first year of production (including the smaller CB250G).[1]
It succeeded the Honda CB350 and provided an alternative to the four cylinder CB350F and CB400F. The CB360 was a new design. The 356 cc engine was tuned for broad range torque, and drove the rear wheel through a six-speed gearbox. The base CB360 model was equipped with front and rear drum brakes, while the CB360t version had a front hydraulic disc brake. It was produced through 1976.
