LMS Sentinel 7192

LMS 7192

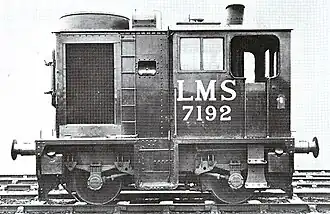

7192 in 1934
Type and origin Power type Steam (geared) Builder Sentinel Waggon Works, Shrewsbury Order number LMS Lot 111 Serial number 8805 Build date 1934
Specifications Configuration: ​  • Whyte 0-4-0T  • UIC B n4vt Gauge 4 ft 8+1⁄2 in (1,435 mm) standard gauge Driver dia. 3 ft 1 in (0.940 m) Wheelbase 8 ft 6 in (2.59 m) Length 18 ft 4+1⁄2 in (5.60 m) Loco weight 20.40 long tons (20.73 t; 22.85 short tons) Cylinders Four: two high pressure, two low pressure High-pressure cylinder 4+1⁄4 in × 6 in (108 mm × 152 mm) Low-pressure cylinder 7+1⁄4 in × 6 in (184 mm × 152 mm)
Career Operators London, Midland and Scottish Railway Numbers 7192 Withdrawn 1963 Disposition Scrapped

The London, Midland and Scottish Railway (LMS) Sentinel No. 7192 was a geared steam locomotive. It was built in 1934 by the Sentinel Waggon Works of Shrewsbury, maker's number 8805 on LMS Lot 111. It had an Abner Doble boiler combined with a 4-cylinder compound arrangement, but an order for an additional locomotive and three railcars to a similar design was later cancelled. It was withdrawn in 1963 and scrapped.

• Rowledge, J.W.P. (1975). Engines of the LMS built 1923–51. Oxford: Oxford Publishing Company. ISBN 0-902888-59-5.
