MMR06

The MMR06 is a Soviet/Russian rocket for meteorological experiments, with a length of 3.48 metres and a total weight of 130 kg. The MMR06 rocket was built in two versions: One version had a conical top, the second one, named MMR06-M, had a detachable free flying top, also called dart. The maximum flight height was about 60 - 80 kilometres. Between 1988 and 1992 62 rockets of the type MMR06-M were launched from the former NVA exercise area Zingst, in order to accomplish wind and temperature measurements in the upper atmosphere.

Technical data of MMR06-M

Total

Total mass 134 ±5 kg
Mass empty 58 kg
Fuel mass 78 kg
Length 4.14 m

Distance from end of nozzle to
center of gravity at launch		 1.445 m
Distance from end of nozzle to
center of gravity at burn-out (Brennschluss)		 1.872 m
Distance from end of nozzle to
center of wind pressure		 1 m

Axial moment of inertia at launch 0.87 kg/m2
Axial moment of inertia at burn-out 0.25 kg/m2

Equatorial moment of inertia at launch 394.5 kg/m2
Equatorial moment of inertia at burn-out 158.5 kg/m2

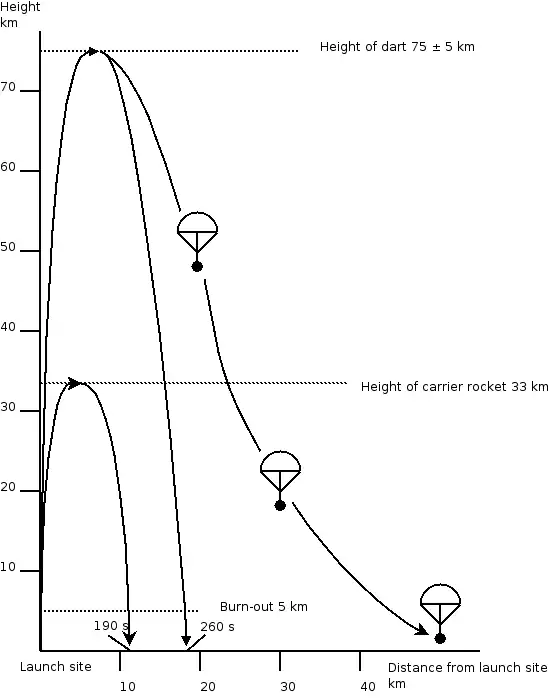

schematic flight path of MMR06-M rocket
schematic flight path of MMR06-M rocket

Aerodynamic coefficients

Cd (drag coefficient) 0.42
Cl (lift coefficient) 20
Cm 34.4
Burn-out velocity 1428 m/s
Rotational velocity of
rocket around own axis		 800 rpm

Rocket engine

Mass with payload 121.8 kg
Mass without payload
with transition piece		 38 kg
Mass without payload
without transition piece		 33 kg
Length with transition piece 2.813 m
Length without transition piece 2.444 m
Time of burn-out 7.2 s - 12 s
Diameter 0.2 m
Wing span 0.6 m
Angle of attack of wings 5' - 40'

Dart

Mass 12.2 kg
Length 1.478 m
Diameter 0.063 m
Distance from end of dart
to center of gravity		 0.78 m
Distance from end of dart
to center of wind pressure		 0.5 m
Axial moment of inertia 0.00752 kg/m2
Equatorial moment of inertia 3.48 kg/m2
Wing span 0.148 m
Angle of attack between wings
and longitudinal axis		 0°
Velocity at expulsion of probe 3.65 m/s
Aerodynamic coefficients
Cd 0.15
Cl 20
Cm 34.4

Parachute system

Mass 1 kg
Time of expulsion 130 s

Launch sites

Ship

  • Musson
  • Ushakov
  • Ernst Krenkel
  • Priliv
  • Volna

Land
