SC2000 bomb
| SC 2000 | |
|---|---|
 | |
| Type | General-purpose bomb |
| Place of origin | Germany |
| Service history | |
| Used by | Luftwaffe |
| Wars | World War II |
| Specifications | |
| Mass | 1,950 kg (4,300 lb) |
| Length | 3.45 m (11 ft 4 in) |
| Diameter | 660 mm (26 in) |
| Warhead | Amatol |
| Warhead weight | 975 kg (2,150 lb)[1] |
The SC 2000 (Sprengbombe Cylindrisch) or cylindrical explosive bomb in English was a general-purpose bomb used by the Luftwaffe during World War II.
Design

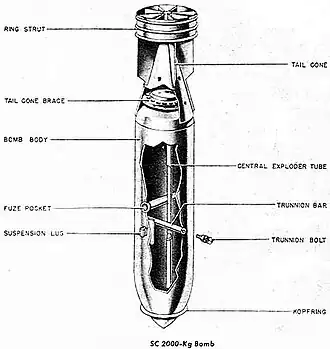

The SC 2000 had a single piece forged and machined steel body and was similar to the preceding SC 1800 in construction. Around the nose of the bomb was a kopfring - a metal ring, triangular in cross section, designed to prevent ground penetration or to stop forward momentum when hitting water. The SC 2000 was filled with Amatol, had a single transverse fuze like the SC 1800 and a central exploder tube which ran through the explosives. The SC 2000 had a circular braced tail ring with four fins. Inside the bomb casing there was a reinforced H-type suspension lug and it could be horizontally suspended in a bomb bay or horizontally mounted on a fuselage hardpoint. There were also lugs that could be fitted for dive bombing.[1]
