SJ Pa

Pa
Type and origin Power type Electric Builder ASEA Build date 1914-1915 Total produced 2
Specifications Configuration: ​  • UIC 2'B2' Gauge 1,435 mm (4 ft 8+1⁄2 in) Length 14,050 mm (46 ft 1+1⁄8 in) Loco weight 91.4 tonnes (90.0 long tons; 100.8 short tons) Electric system/s 15 kV  16+2⁄3 Hz AC Catenary Current pickup(s) Pantograph
Performance figures Maximum speed 100 km/h (62 mph) Power output 665 kW (892 hp)
Career Operators Statens Järnvägar Numbers 27 - 28

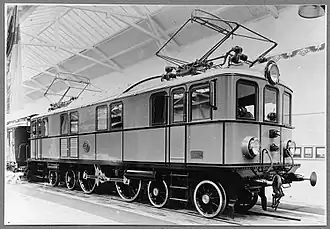

Pa is an electric locomotive used by Swedish State Railways (Swedish: Statens Järnvägar, SJ) for hauling passenger trains on Malmbanan. It was delivered by ASEA in 1914-1915 and was in service until the 1950s. Malmbanan was the first electrified railway owned by the state (several private lines was already electrified) in Sweden, and SJ needed a fast locomotive to haul the passenger trains on the line. One of the units is preserved.
