| Santa Fe 2913 |
|---|

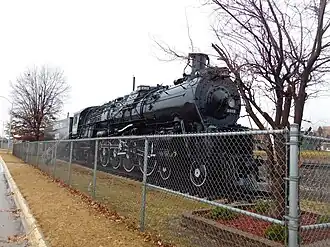

 Santa Fe 2913 on display. |
|
| Specifications |
|---|
Configuration:
| |
|---|
| • Whyte | 4-8-4 |
|---|
| Gauge | 4 ft 8+1⁄2 in (1,435 mm) |
|---|
| Driver dia. | 80 in (2,000 mm) |
|---|
| Length | 120 ft 10 in (36.83 m) |
|---|
| Adhesive weight | 295,000 lb (134,000 kg) |
|---|
| Loco weight | 510,700 lb (231,600 kg)[2] |
|---|
| Total weight | 974,850 lb (442,180 kg) |
|---|
| Fuel type | Oil |
|---|
| Fuel capacity | 7,000 US gal (26,000 L; 5,800 imp gal) |
|---|
| Water cap. | 24,500 US gal (93,000 L; 20,400 imp gal) |
|---|
| Firebox: | |
|---|
| • Grate area | 108 sq ft (10.0 m2) |
|---|
| Boiler pressure | 300 psi (2.1 MPa) |
|---|
| Cylinders | 2 |
|---|
| Cylinder size | 28 in × 32 in (710 mm × 810 mm) |
|---|
|
|
|
Santa Fe 2913 is a 2900 class 4-8-4 "Northern" type locomotive. Built in 1943 by the Baldwin Locomotive Works, it pulled freight and passenger trains until its retirement in 1959. It is now on display in a park in Fort Madison, Iowa,[3] having been donated to the town upon retirement.[4]
Surviving sister engines
- 3751 moved from Viaduct Park in San Bernardino, California in 1986 for restoration to operating condition, which was completed in 1991.
- 3759 is displayed at Locomotive Park in Kingman, Arizona.
- 3768 is displayed at Great Plains Transportation Museum in Wichita, Kansas.
- 2903 is displayed at the Illinois Railway Museum in Union, Illinois.
- 2912 is displayed at the Pueblo Railway Museum in Pueblo, Colorado.
- 2921 is displayed at the Modesto Amtrak Station in Modesto, California.
- 2925 is displayed at the California State Railroad Museum in Sacramento, California.
- 2926 moved from Coronado Park in Albuquerque, New Mexico in 1999 to the New Mexico Steam Locomotive and Railroad Historical Society; then moved again for restoration to operating condition, which was completed in 2021.
