Schleicher ASH 30

ASH 30

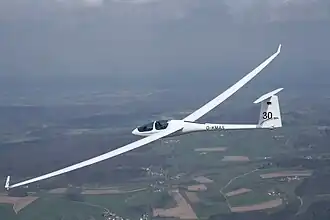

Martin Heide and Peter Kremer flying the maiden flight.
General information
TypeOpen Class sailplane
National originGermany
ManufacturerSchleicher
Designer
Martin Heide
Number built5 as of 2013[1]
History
First flight7 April 2011[2]

The ASH 30 is a two-seater Open Class glider manufactured by Alexander Schleicher, developed as a replacement for the ASH 25.[3] The Mi version is powered by a 41 kW (55 hp) Wankel engine.[4] The prototype made its maiden flight on 7 April 2011 from Wasserkuppe.[2]

Design and development

The improvements over the ASH 25 are given as:

  • a larger span
  • new wing sections with a coefficient of lift that is about 0.2 higher[5]
  • a maximum take-off weight of 850 kg for the Mi version
  • automatic control surface connections for the entire aircraft
  • enlarged cockpits
  • larger canopies to improve visibility and to allow easier entry and exit for the rear pilot

Variants

ASH 30
The un-powered prototype glider.
ASH 30 Mi
The motor-glider production aircraft, capable of self launching with a retractable engine and propeller.

Specifications (ASH 30 Mi)

Data from Schleicher.[6]

General characteristics

  • Crew: Two
  • Capacity:
    • 50 L (110 lb) max. water ballast in wing
  • Length: 9.33 m (30 ft 7 in)
  • Wingspan: 26.5 m (86 ft 11 in) including winglets
  • Height: 1.79 m (5 ft 10 in)
  • Wing area: 17.17 m2 (184.8 sq ft)
  • Aspect ratio: 40.9
  • Empty weight: 630 kg (1,389 lb)
  • Max takeoff weight: 850 kg (1,874 lb)
  • Fuel capacity:
    • 14 L in fuselage fuel tank
    • 44 L with 2 wing fuel tanks
  • Powerplant: 1 × Austro Engine IAE 50R-AA single rotor Wankel engine, 41 kW (55 hp) [7]
  • Propellers: 2-bladed, 1.55 m (5 ft 1 in) diameter (retractable)

Performance

  • Maximum glide ratio: >60
  • Rate of climb: 3 m/s (590 ft/min)
  • Wing loading: 49.5 kg/m2 (10.1 lb/sq ft)
