TCDD DH7000

DH 7000

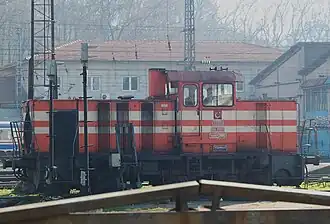

DH7007 at Sirkeci yard, Istanbul.
Type and origin
Power typeDiesel-hydraulic
BuilderTülomsaş
Build date1994[1]
Total produced20[1][2]
Specifications
Configuration:
​
 • UICC
Gauge1,435 mm (4 ft 8+1⁄2 in)
Bogies1
Wheel diameter1,000 mm (3 ft 3 in)
Length10,184 mm (33 ft 4.9 in)
Width3,000 mm (9 ft 10.1 in)
Height4,195 mm (13 ft 9.2 in)
Loco weight51 tonnes (50 long tons; 56 short tons)
Fuel capacity1,800 litres (400 imp gal; 480 US gal)
Engine typeCummins KTTA 19L1
TransmissionVoith L4
Loco brakeBlock break, Parking pawl
Train brakesAir
Safety systemsDead man's switch
Performance figures
Maximum speed40 km/h (25 mph)
Power output522 kW (700 hp)
Career
OperatorsTurkish State Railways
NumbersDH7001 – DH7020

TCDD DH 7000 are a type of diesel-hydraulic locomotive built for operations on Turkish State Railways by Tülomsaş. The DH7000 was primarily used as a shunter. A total of 20 units were delivered from 1994.
