Tokyo Metro 2000 series

Tokyo Metro 2000 series

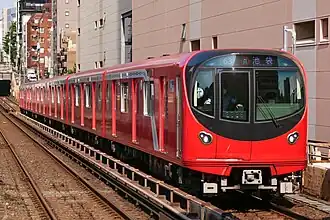

A Marunouchi Line 2000 series train at Korakuen Station
Interior view of Tokyo Metro 2000 series
In service	2019–present
Manufacturer	Nippon Sharyo, Kinki Sharyo
Built at	Toyokawa, Aichi (Nippon Sharyo) and Osaka (Kinki Sharyo)
Replaced	Tokyo Metro 02 series
Constructed	2018–2023
Entered service	23 February 2019
Number built	312 vehicles (52 sets) as of 26 January 2024[1]
Number in service	312 vehicles (52 sets) as of 27 February 2024[2]
Formation	6 cars per trainset
Fleet numbers	2101–2152
Capacity	122 (36 seating) (end cars), 137 (44 seating) (intermediate cars)
Operators	Tokyo Metro
Depots	Koishikawa, Nakano
Lines served	M Marunouchi Line
Specifications
Car length	18 m (59 ft 1 in)
Width	2.78 m (9 ft 1 in)
Height	3.48 m (11 ft 5 in)
Doors	3 per side
Maximum speed	80 km/h (50 mph) (design) 75 km/h (47 mph) (service)
Weight	189.5 t (186.5 long tons; 208.9 short tons)
Traction system	Toshiba PWM 2-level SiC-MOSFET–VVVF
Traction motors	Toshiba 10 × permanent magnet synchronous motor
Transmission	Westinghouse Natal (WN) drive; Gear ratio: 7.79 : 1
Acceleration	0.92 m/s2 (2.1 mph/s) (normal service) 0.97 m/s2 (2.2 mph/s) (ATO-enabled)
Deceleration	1.1 m/s2 (2.5 mph/s) (service) 1.4 m/s2 (3.1 mph/s) (emergency)
Electric system(s)	600 V DC third rail
Current collection	Contact shoe
UIC classification	(A1)(1A)+(A1)(1A)+(A1)(1A)+(A1)(1A)+(A1)(1A)+2′2′
Bogies	SC108
Braking system(s)	ATC-controlled ECP brakes with TRT-11 type regenerative braking
Safety system(s)	New CS-ATC (ATO), TASC, Mitsubishi CBTC
Coupling system	Tomlinson
Track gauge	1,435 mm (4 ft 8+1⁄2 in) standard gauge

The Tokyo Metro 2000 series (東京メトロ2000系, Tōkyō Metoro 2000-kei) is an electric multiple unit (EMU) train type operated by Tokyo Metro for use on the Marunouchi Line in Tokyo, Japan. They serve as a replacement for the Tokyo Metro 02 series that was in service on the Marunouchi Line from 1988 to 2024.^[3]

The trains are built by Nippon Sharyo and Kinki Sharyo, with Toshiba supplying the electrical equipment.^[4] They are fitted with permanent magnet synchronous motors and silicon carbide traction inverters, which are expected to reduce the power consumption by about 20%, compared to the previous Tokyo Metro 02 series.^[5][6]

Self-steering axles similar to those of the 1000 series are fitted to the bogies.^[4]

The trains are formed as six-car sets.^[4]

The seating accommodation consists of longitudinal seating.^[4] The cars are air conditioned, with feature round windows at the car ends. They also have power outlets for passengers to charge their mobile devices.^[7]

•
  Interior view
•
  Interior view at the end of a car
•
  Passenger information displays
•
  Power outlets
•
  Circular grab handle
•
  Teardrop-shaped grab handle

In March 2018, Tokyo Metro announced plans to introduce a new fleet of 53 six-car sets (318 cars) for the Marunouchi Line, which would replace the Tokyo Metro 02 series.^[3] The first trainset was unveiled to the press on 11 October 2018.^[8] The trains are scheduled to enter revenue service in February 2019,^[4] with the introduction of all 53 sets by fiscal 2022.^[7] The trains entered service on 23 February 2019.^[9] In March 2020, it was announced that the number of sets has been reduced to 52 sets (312 cars), being delivered until fiscal 2023.^[10]

The delivery dates for the fleet are as shown below as of 2024.^[11][12]
