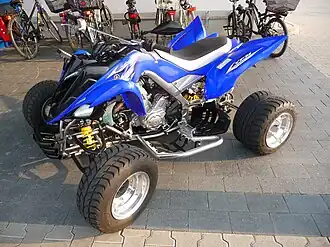

The Yamaha Raptor 700R is a full-size all terrain vehicle (ATV) or quad bike.[1][2] The Raptor 700R is Yamaha's second generation of the Raptor (first gen being the Raptor 660) and is powered by a 686cc single cylinder overhead cam electronically fuel injected engine, with electric start and a five-speed manual transmission with a single-speed reverse.[3]
| Engine
|
|
| Type
|
686cc liquid-cooled with fan, four-stroke; SOHC, four valves
|
| Bore x stroke
|
102.0mm x 84mm
|
| Compression ratio
|
10.0:1
|
| Fuel delivery
|
Yamaha fuel injection, 45mm
|
| Ignition
|
32-bit ECU
|
| Starting system
|
Electric
|
| Transmission
|
Five-speed sequential gearbox with a single-speed reverse; multi-plate wet-clutch
|
| Drive train
|
2WD; sealed O-ring chain, eccentric adjustment
|
| Chassis
|
|
| Front suspension
|
Independent double-wishbone w/piggy back high-lo-speed compression, rebound and threaded preload adjustment, 9.1-in travel
|
| Rear suspension
|
Cast aluminum swingarm w/rebound, high-lo-speed compression and threaded preload adjustment, 10.1-in travel
|
| Brakes, front
|
Dual ventilated hydraulic discs, twin pistons
|
| Brakes, rear
|
Ventilated hydraulic discs, self-adjusting park brake function
|
| Tires F/R
|
Maxxis AT22 x 7-10 radial / Maxxis AT20 x 10-9 radial
|
| Dimensions
|
|
| L x W x H
|
72.6 x 46.5 x 43.9 in
|
| Seat height
|
32.7”
|
| Wheelbase
|
50.4”
|
| Ground clearance
|
4.4”
|
| Fuel capacity
|
2.9 US gallons
|
| Wet weight
|
422 pounds
|
